称重测力传感器->BH-302型
BH-302型
描述
◆ 吊钩秤、配料秤、包装秤及专用测力装置
Crane scale, Blending scale,Packing scale and special testing device

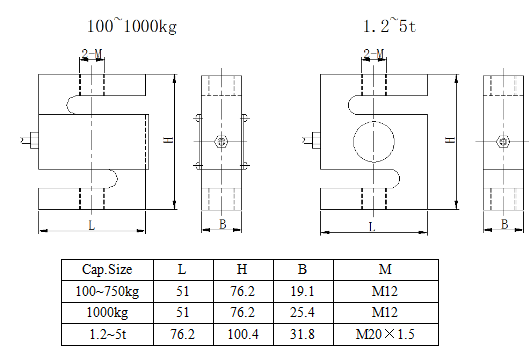

◆ 外形尺寸Dimensions （单位Unit: mm）:
◆ 技术参数Technical parameter:
|
额定载荷Reted capacities (Emax)
|
100,200,250,300,500,750,1000kg/1.5,2,3,5t
|
|
灵敏度 Sensitivity
|
2.0±0.003 mV/V
|
|
精度等级 Accuracy class
|
±0.02% F.S
|
|
零点平衡 Zero balance
|
±1% F.S
|
|
零点温度影响 Temp. effect on zero
|
±0.02% F.S/10℃
|
|
输出温度影响 Temp. effect on Span
|
±0.02% F.S/10℃
|
|
输入阻抗 Input resistance
|
400±20Ω
|
|
输出阻抗 Output resistance
|
352±3Ω
|
|
绝缘电阻 Insulation resistance
|
≥5000MΩ
|
|
温度补偿范围
Temperature range compensated
|
-10~+40℃
|
|
工作温度范围
Operating Temperature Range
|
-30~+70℃
|
|
安全过载 Maximum safe over load
|
150%F.S
|
|
极限过载 Ultimate over load
|
250%F.S
|
|
推荐激励电压
Recommend excitation voltage
|
10~12V DC
|
|
最大激励电压
Maximum excitation voltage
|
15V DC
|
|
密封等级 Sealing Class
|
IP67
|
|
材质 Element material
|
合金钢Alloy Steel
|
|
电缆 Cable
|
Length：3m
|
