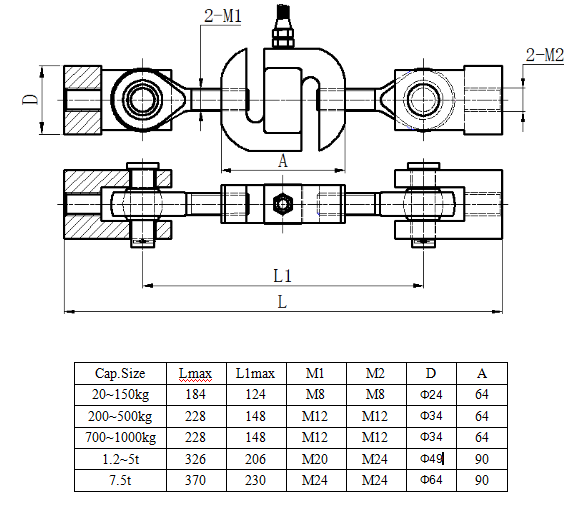

◆ 吊钩秤、配料秤、包装秤及专用测力装置

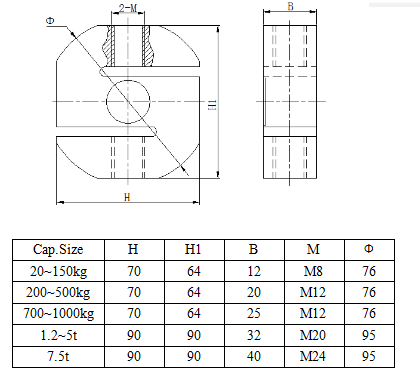

    ◆ 外形尺寸Dimensions （单位Unit: mm）:







额定载荷Reted capacities (Emax)	20,50,100,150,200,250,300,500,750,1000kg1.5，2，3，5，7.5t
灵敏度 Sensitivity	2.0±0.003  mV/V
精度等级 Accuracy class	±0.02% F.S
零点平衡 Zero balance	±1% F.S
零点温度影响 Temp. effect on zero	±0.02% F.S/10℃
输出温度影响 Temp. effect on Span	±0.02% F.S/10℃
输入阻抗 Input resistance	400±20Ω
输出阻抗 Output resistance	352±3Ω
绝缘电阻 Insulation resistance	≥5000MΩ
温度补偿范围 Temperature range compensated	-10~+40℃
工作温度范围  Operating Temperature Range	-30~+70℃
安全过载 Maximum safe over load	150%F.S
极限过载 Ultimate over load	250%F.S
推荐激励电压  Recommend excitation voltage	10~12V DC
最大激励电压  Maximum excitation voltage	15V DC
密封等级 Sealing Class	IP67
材质 Element material	合金钢Alloy Steel
电缆 Cable	Length：3m
